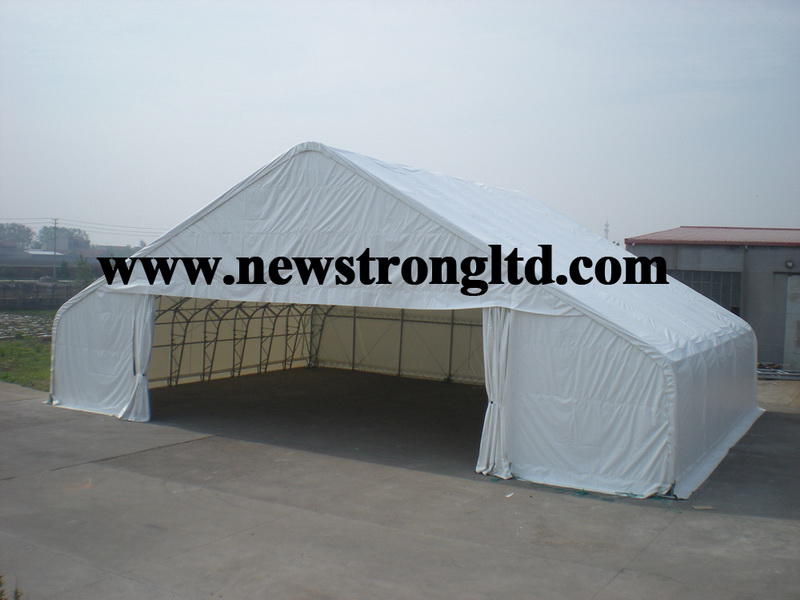

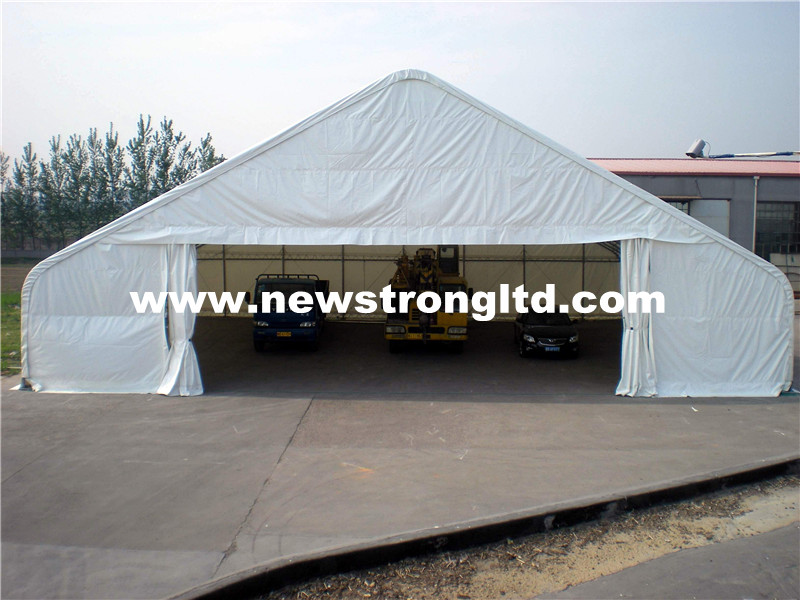

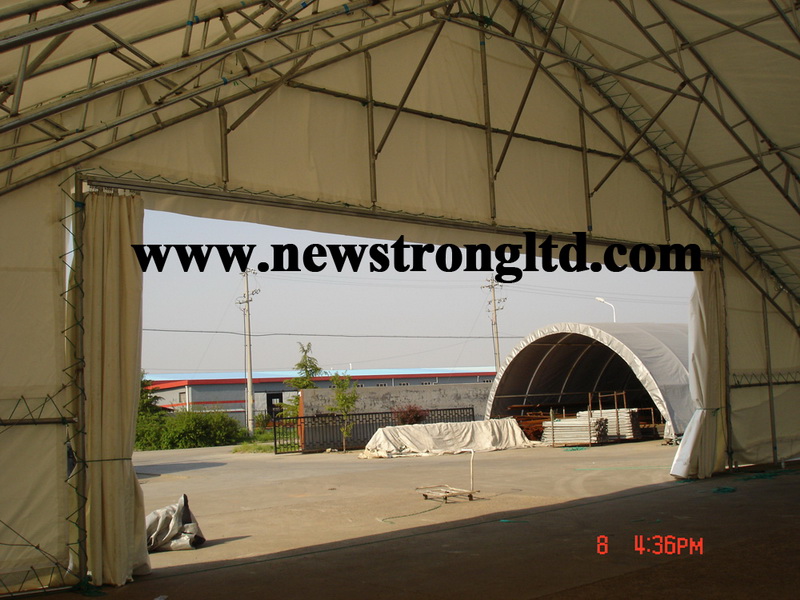

Specially Designed Super Strong Truss Building, Warehouse

TSU-6549

Size: L15 x W20 x H8m (L49´ x W65’ x H26.2’)

All Steel frame is hot galvanized for Antirust.

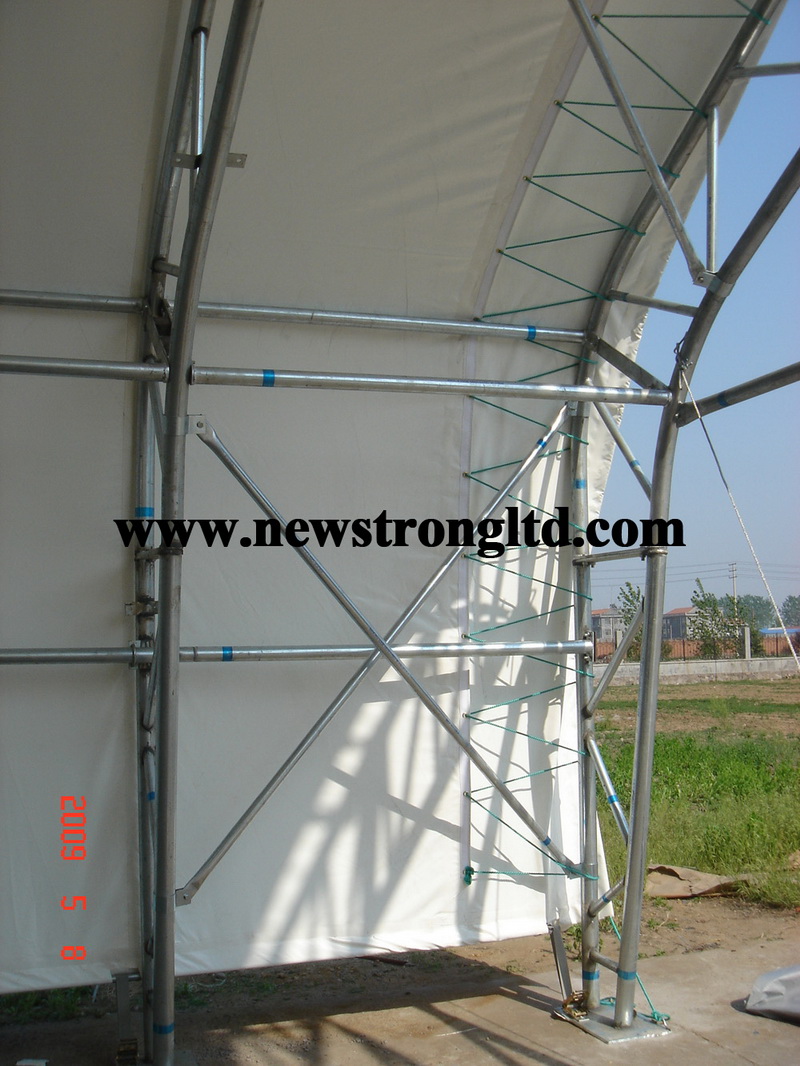

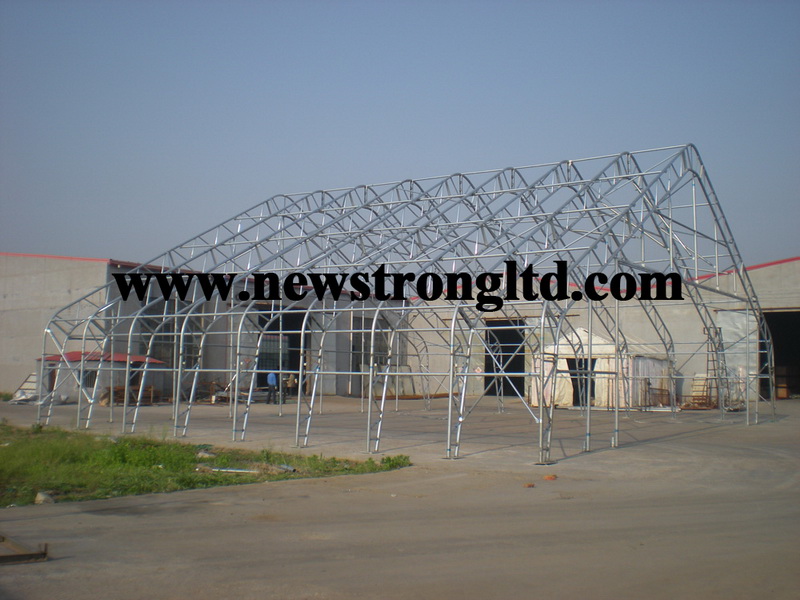

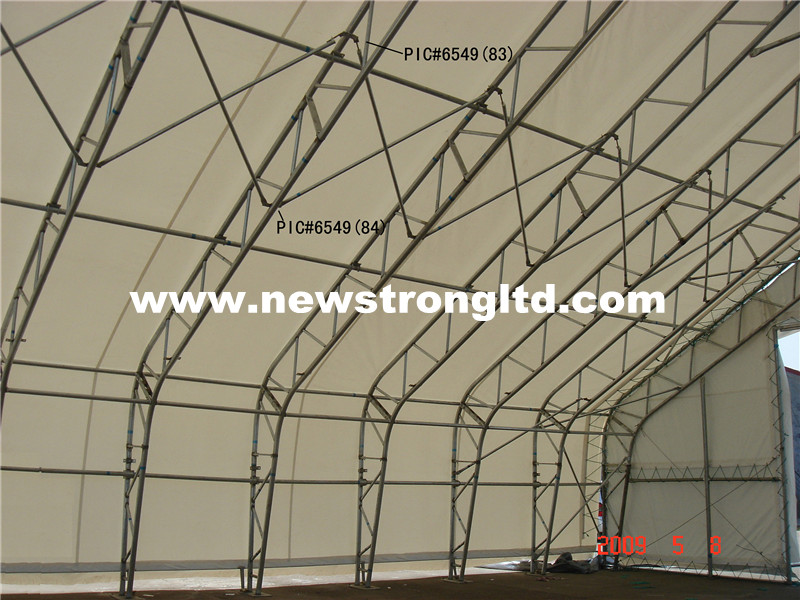

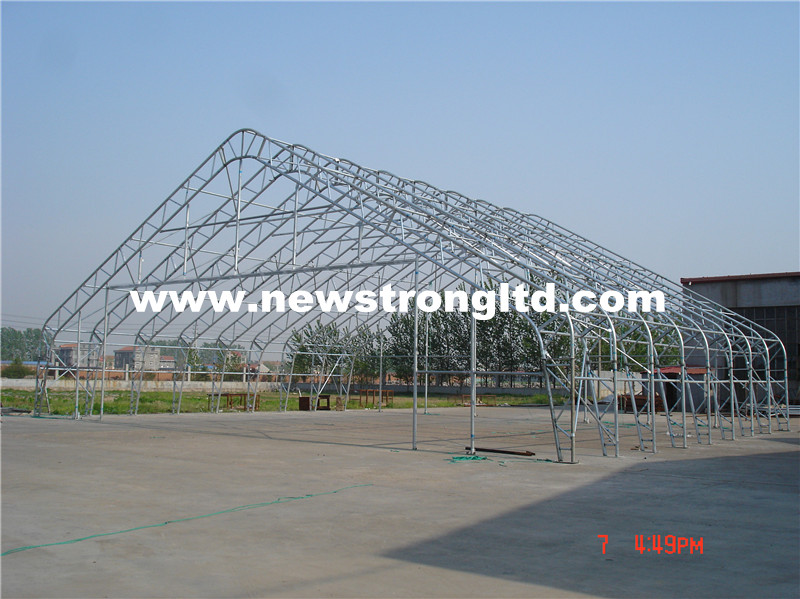

Arches : Specially Designed for extremely Strong Wind and Snow. Truss arch made of Φ 76x3.0mm tubing, Enhanced truss arch spacing, 1.875 m(6.15’) arch spacing, more truss arches for support. With base plate at bottom of each arch and 3 stake pegs on each base plate for anchor.

Purlins : 60x2.5mm steel tubing, total 13 groups purlins. With diagonal support tubes in all the structure.

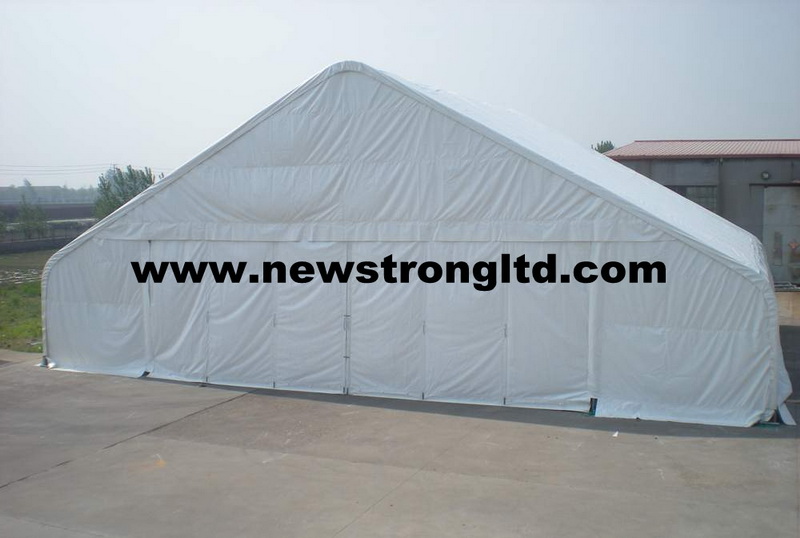

Door Type: Sliding door, door size: W12 x H4.0m (W39.3’ x H13.1’).

Delivery time : 20-25 Work Days/GP after order confirmed.

Fabric: 610g/sq.m PVC with 10 years longevity, UV resistant, Fire retardant..

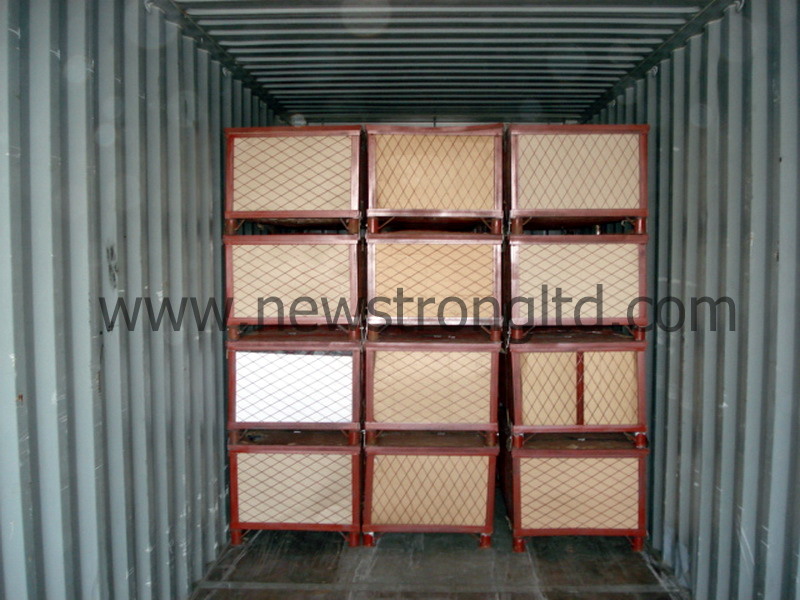

Steel Crate Package

G.W./N.W.: 7380/7204kgs

Qty/FCL: 3 sets/40´

Special dimensions can be made according to your requirement.
